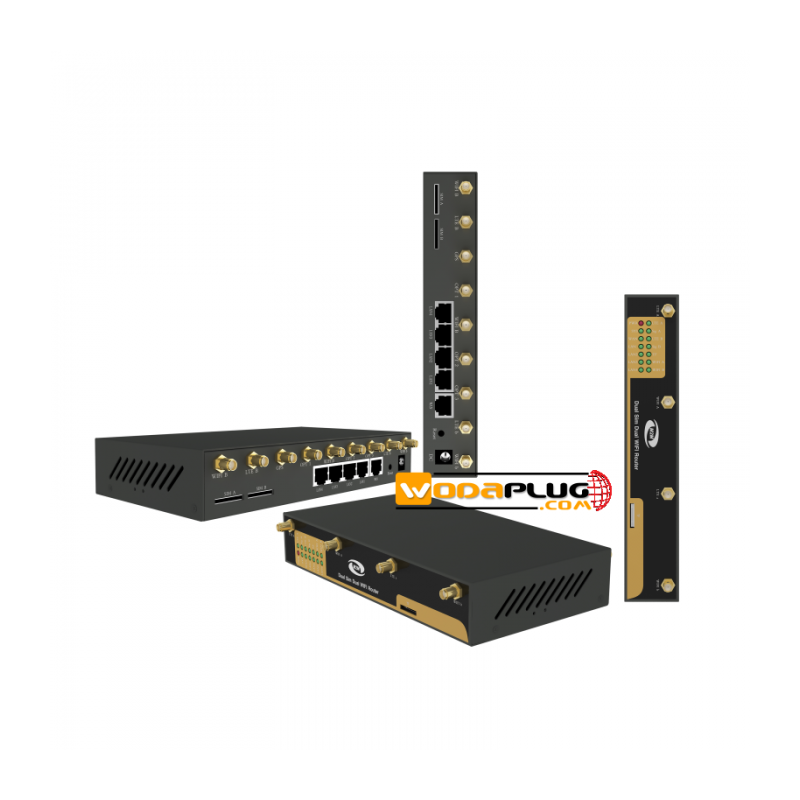

Wodaplug® Dual SIM 5G 4G LTE-A dual module router MTK7621,4*LAN, ac WiFi, bez LTE modulu

2 995,64 Kč
S DPH SKLADEM ! Dodání 24 - 48 hodin - odesíláme do 13:00 téhož dne

Wodpalug H721 v5G Dual SIM 5G LTE router s ROOTer firmwarem má 4 samostatné (standalone - nesdílené) modulové rozšiřující sloty a je vynikajíc volbou pro náročné aplikace.  Router board (PCB) je poháněn výkoným procesorem MTK7621A a má zabudovaný jeden specializovaný M.2 slot (USB 3.0 Max 5000Gbps) pro 5G LTE modemy a 2x SIM Card slot, pracuje s M.2 modemy Quectel, Sierra Wireless a SIMCOM. Také má 3 x Minipcie sloty - 1 x pro další LTE modem (můžete použít i náš M.2 B-Key adapter), 1x pro 11ac WiFi module jako např. 524wifi 600/900VX a další 1 x miniPCIe pro vaše starší 3G/4G modemy či druhý WiFi modul (ochrana předešlých investic). Nová laděná verze s podporou 5G - H721 v5G router! Pro více informací o novinkách sledujte naší facebook page for news!

Počet
SKLADEM - Ihned k odběru !



Pravidla bezpečnosti



Zásady doručování



Reklamační řád

Wodpalug H721 v5G Dual SIM 5G LTE router s ROOTer firmwarem má 4 samostatné (standalone - nesdílené) modulové rozšiřující sloty a je vynikajíc volbou pro náročné aplikace.  Router board (PCB) je poháněn výkoným procesorem MTK7621A a má zabudovaný jeden specializovaný M.2 slot ( USB 3.0 Max 5000Gbps ) pro 5G LTE modemy a 2x SIM Card slot, pracuje s M.2 modemy Quectel, Sierra Wireless a SIMCOM. Také má 3 x Minipcie sloty - 1 x pro další LTE modem (můžete použít i náš M.2 B-Key adapter), 1x pro 11ac WiFi module 524WiFi 600/900VX a další 1 x miniPCIe pro vaše starší 3G/4G modemy či druhý WiFi modul (ochrana předešlých investic).

Nová laděná verze s podporou 5G - H721 v5G router ! Pro více informací o novinkách sledujte naší facebook page for news !

The H721 v5G nyní obsahuje:

    • 4 x 5G LTE Antény + MHH4 pigtaily for LTE modul (předinstalovány)
    • 3 x WiFi  Antény (dual band) + 3 x U.FL to SMA Bulkhead Antenna Connector Pigtails (předinstalováno a zapojeno do WLE600VX modulu).
    • 1 x QCA 9880 900VX 524wifi modul 11ac/n (2,4/5GHz), miniPCIe (předinstalovaný, možno dokoupit druhý WiFi modul pro dual band)
    • 12 Volt 2Amp napájecí zdroj
    • 6 x šroubky, podložky a matičky pro uchycení vašeho M.2 LTE modemu
    • Sada pro uchycení na zeď
    • Cat5e Ethernet kabel
    • Pozor - GSM / LTE modul není součástí, prosím použijte či objednejte ho samostatně dle vašich potřeb. Jako WiFi modul můžete také použít WLE200NX / 200N2 nebo WLE1216 wave2 moduly. Jako GSM/LTE modemy můžete použít Quectel, Sierra či SIMCOM moduly včetně nejnovějších CAT12, CAT16 modulů a hlavně nové 5G moduly Quectel RM500Q-GL či SIMCOM
    • Supports 5GNR 5G modules Quectel, SIMCom & LTE CAT 3, 4, 6, 12, 16 and 16 LTE modules - it has fully support CAT12 or CAT16 Quectel latest LTE modem. EM16-G, EM20-G and EM12-G.
    • it has all modules slots standalone (not shared !!!) 3 x MiniPCIE & 1 x M.2 (usb 3.0 protocol) interface Max 5000Gbps throughput.

The H721 v5G Dual sim 5G LTE router with 4 standalone modules slots has been a great choice for custom builds and applications.  The router board’s (PCB) built in 1x M.2 slot for LTE modem and 2x SIM Card slots, makes it a great fit for our line of Sierra Wireless  Quectel M.2 modems. Also have 3 x Minipcie slots, 1 x for aditional modem (it is our M.2 B-Key adapter compatible) and 2 x more for your old standard modem (save your investment) or new one smoking gun in wifi world like 524WiFi 600vx / 900vx QCA9880 miniPCIe modules.



Our new inventory of H721 v5G routers were special ordered to better accommodate our customer’s needs. New improved 5G ready version! Once again, if you want to have all info about ETA, versions,etc pls check our facebook page for news !



The H721 v5G now includes:

      • 4 x 5G LTE Antennas + MHH4 pigtails for LTE modules pre-installed
      • 2 x WiFi  Antennas + 2 x U.FL to SMA Bulkhead Antenna Connector Pigtails (pre-installed).
      • 1 x QCA 9880 600VX 524wifi module 11ac/n (2,4/5GHz), miniPCIe
      • 12 Volt 2Amp Power Adapter
      • 6 x Screws, Spacers/Nuts to mount M.2 LTE modem
      • Wall mounts, screws and lags
      • Cat5e Ethernet Cable
      • Nor GSM / LTE module included in, please order them separately based on your needs. For WiFi you can also use  WLE200NX or WLE1216 wave2 modules, for GSM/LTE you can use Quectel or Sierra modules including latest CAT12, CAT20 modules and also new 5G modules Quectel RM500Q-GL
      • Supports 5GNR 5G modules Quectel, SIMCom & LTE CAT 3, 4, 6, 12, 16 and 16 LTE modules - it has fully support CAT12 or CAT16 Quectel latest LTE modem. EM16-G, EM20-G and EM12-G.
      • it has all modules slots standalone (not shared !!!) 3 x MiniPCIE & 1 x M.2 (usb 3.0 protocol) interface Max 5000Gbps throughput.
      • Tuned FirmWare from 5G LTE HW experts - We have customer test EM12 and EM20 in ATT, T-mobile and Sprint in US and many others, all work great

Hardware:

4 stand alone slots (not shared!!): 2x Minipcei for wifi, 1xMinipcie(USB2.0) for LTE, 1xM.2(USB3.0) fot 5GNR and LTE

MTK7621A Flash16M / RAM256M(CPU Cores:2 ;CPU MHz:880)

1x M.2 (NGFF key B) slot USB3.0 support  5 Gbit/s  bandwidth (5GNR for 5G network and UTMC GMS 3G 4G LTE etc.)

1x MiniPCIE (UTMC GMS 3G 4G LTE ) slot USB2.0 support 480Mbit/s

1x Minipcie slot for primary WIFI (support 3.3V and 5V wifi card)

1x Minipcie slot for secondary WIFI (only support 3.3V wifi card), this slot can be shared as Usb2.0 modem slot.

4 x lan+1 x wan 10/100M/1000M RJ45 port

1 x TF card slot

14 x led for display more information.
12 x antenna hole for future use total

H721 v5G support DC 12-24V

 + SIM slot ESD protection. Independence Power regulator  for LTE and WIFI slot ,Industrial voltage regulator wide range input 5V ~ 27V, Solid capacitor be adopted. Metal case for heat conduction.



Detachable Wireless (Wi-Fi) Overview - 802.11ac/n 524WiFi 600VX module preinstalled

H721 Router provider 2 x Mini PCIE interface  for wifi, The current Router firmware has preloaded 9K and 10K wifi driver, support all Qualcomm AR and QCA series Mini PCIE wifi card (do not support any wifi card mixed with bluetooth)

we have tested following wifi card already : AR9280 AR9287 AR9382, QCA9880 QCA9882

  Software:

We use ROOTer (https://www.ofmodemsandmen.com/) firmware. Daiyman Has made firmware for this board.
support most ROOTer function, support most LTE modem drivers(sierra wireless,Quectel,Huawei,ZTE,Meig)

We have tested:  Quectel RM500Q RM502Q RM510Q RM520N EC25E EC25A EC20 EM06 EM12

sierra wireless EM(MC)7355 EM(MC)7455 EM7430 EM7565 EM7511 , MeiG SLM750 (TA) , ZTE ME3760 ME3860

Add 9K and 10K drivers for all QCA and AR wifi card router has pre-flashed BREED (https://www.breed.hackpascal.net) and latest ROOTer firmware

Source code and firmware download address: http://wifi5.eu/dls/wodaplug.com/LTE-routers/H721/

Rooter firmware pro tento router : https://drive.google.com/drive/folders/1oy_x5cKbh3XZjzW1jiKHvEqq9lFHmrxQ

 - you can download rooter firmware, Dairyman still update the firmware, it support RM520N now, we test 05-24-AB22 full,

Special FEATURES:

Connection Monitoring
Connection Failover
Load Balancing
Network Status
SMS Messaging
The Miscellaneous Page
Features to Help Debug Modem Problems



  Specifications

Main Chipset

MTK7621 / Dual-core / 880MHz

RAM

DDR3 256MB (Expandable to 512MB)

FLASH

SPI Flash 16MB (Max 32MB)

Wi-Fi Protocol

IEEE802.11ac, IEEE802.11a, IEEE802.11n, IEEE802.11g, IEEE802.11b, IEEE802.3, IEEE802.3u

Wi-Fi Rate

5GHz: 1300Mbps Max, depend on your wifi card  2.4Ghz: 450 Mbps depend on your wifi card

Antennas

5 x 5dBi (Wi-Fi) detachable

Interfaces

1 x 10/100M/1000M WAN Port, Auto MDI/MDIX4 x 10/100M/1000M LAN Port

1x M.2 (NGFF key B) slot USB3.0 support 5GNR/LTE

1x miniPCIE (NGFF Key B) slot USB2.0 support LTE

2 x mini PCIe slot for wifi

1x mini PCIe slot for Modem(Shared with 1 wifi slot)

1 x SD card slot

2x SIM card slot (esd protection)

LED

LTE A,SigA,LTE B,Sig B, TF, WIFI A,WIFI B

PWR, SYS, WAN , LAN 1/2/3/4

Button

1 x RESET

Power

DC 12V 2.0A adapter, H721 v5G support DC 12-24V

Power Consumption

< 12W (without wifi   card)

Dimensions(L*W*H)

Router: 180MM (7.08ft) x 105MM (4.13ft) x 23MM (0.90ft)PCB:

Management

IP: 192.168.1.1User Name: admin

Password: admin

Uses

  LTE Router

WAN Type

3G/4G/LTE/5GNR,PPPoE, Dynamic IP, Static IP,

DHCP

Server,  Client, DHCP Client List, Address Reservation

Port Forwarding

Server, Client, DHCP Client List, Address Reservation

Operating System

 OpenWRT,   LEDE/ROOter

Firewall Security

Client filterMAC Address Filter

URL Filter

Long-distance WEB management

DNNS

Supported

Bandwidth Control

Supported

Static Router

Supported

System Logging

Supported

Web UI Themes

Supported

Other Functions

Breed preload

Multi-Wan Load Balancing

SMS Messaging

Work Environment

Operating Temperature: 0℃ ~ 40℃

Storage Temperature: -40℃~ 70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 10%~90% non-condensing

Certifications

 CE, FCC, RoHS

Included Accessories

3 x 5dBi 5Ghz SMA detachable Wi-Fi antennas

2 x 5dBi 2.4GHz  SMA detachable Wi-Fi antennas

5 x ipx to sma pigtail for wifi

2 x 4dBi detachable LTE Omini antenna

2 x ipx4 to sma-RP pigtail for LTE

1 x Power Adapter 12V DC

6 x Screws/Spacers for mini PCI-e modem card installation

Router case colors may vary from photos

Dimensions(L*W*H)

Router: 197mm (7.75ft) x107mm (4.2ft) x 34mm (1.34ft



Packaging: 240mm (9.4ft) x 195mm (7.6”) x 70mm (2.7)

Weight

Router: 0.8 KG (1.76 LBS)Packaged: 1.4 KG (3.07 LBS)
