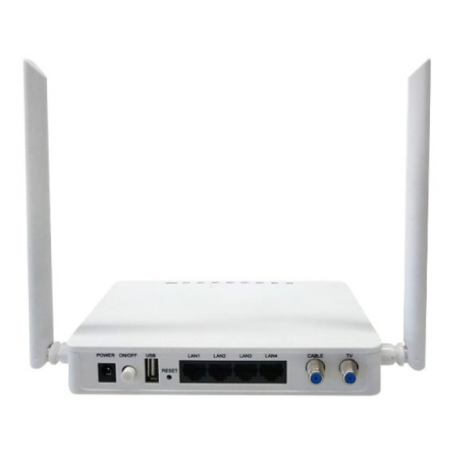

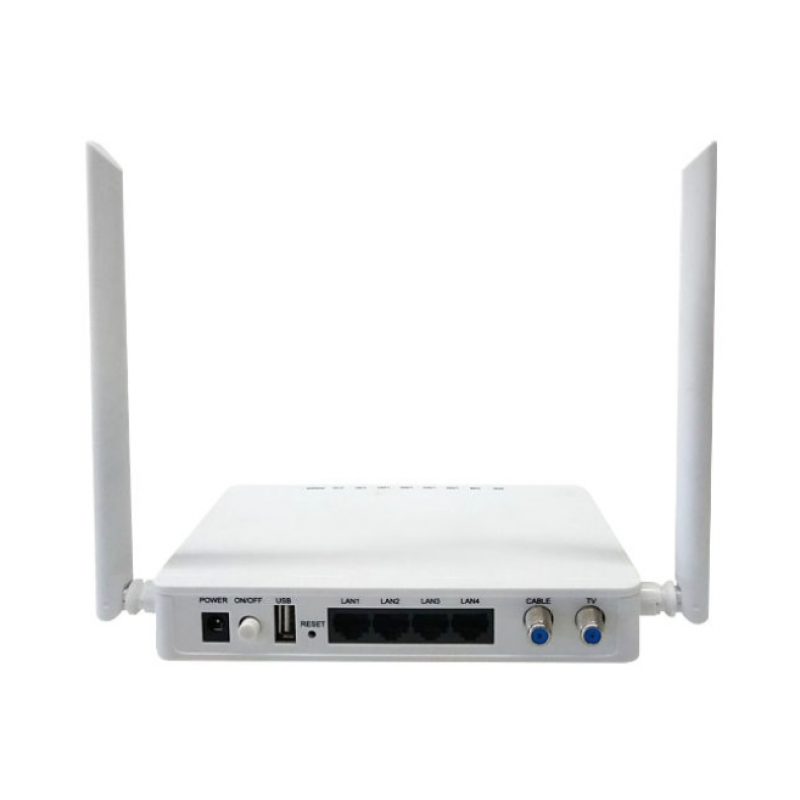

copy of Wodaplug EOC Slave + 2x2 WiFi EOC1121R4WL-R410, 600Mbps, 4xLAN, 2xF
Kč1,620.00
Tax included
1000M EOC end unit / slave (AV2), indoor, 2*F connector, 4*LAN 10/100Mb, Dual band WiFi
This new Wodaplug MSTAR 510CE chip Homeplug AV2 Ritcherlink based EOC Slave can offer 500 Mbps real troughput over existing coax cable network for long range up to 1km. Can work together with Wodaplug 1121L and Wodaplug 1000 AV2 EOC Master.
1000M EOC Slave is the terminal device in this system, it offers 4 FE ports, dual band WiFi, build L2 Ethernet transmission channel in the cable network, to transmit internet signal, but not affect the original CATV signal at the same time.
It has the advantages of long transmission distance, good network adaptability and high bandwidth.
Security policy
Delivery policy
Return policy
1000M EOC end unit / slave (AV2), indoor, 2*F connector, 4*LAN 10/100Mb, Dual band WiFi
This new Wodaplug MSTAR 510CE chip Homeplug AV2 Ritcherlink based EOC Slave can offer 500 Mbps real troughput over existing coax cable network for long range up to 1km. Can work together with Wodaplug 1121L and Wodaplug 1000 AV2 EOC Master.
1000M EOC Slave is the terminal device in this system, it offers 4 FE ports, dual band WiFi, build L2 Ethernet transmission channel in the cable network, to transmit internet signal, but not affect the original CATV signal at the same time.
It has the advantages of long transmission distance, good network adaptability and high bandwidth.
Wodaplug MSS5004WAC is an EOC Slave based on Ritcherlink MStar MSE510CE solution. It’s has 4 10/100M full duplex Ethernet ports which can simultaneously connect computer, Set Top Box(STB) or other terminals. When working with Richerlink EoC master series, it can reach the maximum physical rate of 1000Mbps and build Layer-2 Ethernet transmit network through television coaxial cable and meanwhile have no influence on the pre-existing CATV signal transmission.
Wodaplug MSS5004WAC occupies low frequency band under 65MHz and has no collision with the current CATV system frequency which can decrease mutual interference. Wodaplug MSS5004WAC support 4 SSID which can for cable operator use or end users use. It’s based on 802.11n standard, compatible with 802.11 b/g/n/ac, providing up to 1200M wireless transmission for home network coverage.Wodaplug MSS5004WAC support Bandwidth control and encrypted transmission to satisfy high reliable service. The maximum uplink bandwidth can be configured individually in order to prevent the attack to the whole coaxial transmission network.
Interested in test reports and datasheets ? Please visit http://wifi5.eu/dls/wodaplug.com/EOC-master-slave/Wodaplug1000_EOC/
Wodaplug MSS5004WAC has two accounts with different authority: Administrator Account and User Account. Web management 192.168.1.1.
Product Features:
Compatible with IEEE HomePlug AV, 802.11 b/g/n/ac, IEEE802.3, IEEE802.3u
EoC coaxial cable WAN access, providing TV, WiFi, 10/100M Ethernet port
Support CSMA/CA, CSMA/CD, TCP/IP, PPPoE, DHCP, ICMP, NAT protocol
Provide 1 WAN port, 4 10/100M LAN ports, supporting Auto MDIMDIX
Provide two working mode: Bridging and Routing
Support Quality of Service（QoS）-802.11e
Support remote and WEB management, full English UI
Support 4 SSID
Support NAT/NAPT IP sharing, PPPoE/Static IP/PPTP/DHCP
Provide up to 1200Mbps wireless transmission
Support virtual server, DMZ host
Support 128bit WEP/WPA-PSK/ WPA2-PSKencryption
Support UPnP, DDNS；
Support IP filter, port filter and MAC address filter
Built-in DHCP server and firmwall, can prevent DoS attack
Provide system security log and flow statistics function
Provide Web Management Reset, supporting online software updating
Support 5dBi HG omni antenna
Product Specification:
Port: WAN 1 F connector , LAN 4 10/100M RJ45 port ,TV 1 F connector
Standard: IEEE HomePlug AV, IEEE 802.11b/g/n, IEEE 802.3, IEEE 802.3u, CSMA/CA, CSMA/CD,TCP/IP, DHCP, ICMP, NAT, PPPoE
WiFi :
Frequency 2.4~2.4835GHz
5G:low frequency 5.15GHz～5.25GHz,middle frequency 5.25GHz～5.35GHz,High frequency 5.725GHz～5.825GHz
Transmission speed 2.4G up to 300Mbps 5G up to 867Mbps
Channel number - 13(Different countries or regions have differences)
Data Modulation DBPSK、DQPSK、CCK and OFDM(BPSK/QPSK/16-QAM/64-QAM)
Transmit Distance - Up to 120m indoor or 360m outdoor
Antenna 5dBi detachable HG omni antenna
EoC:
Frequency 7.5-86MHz
Output Power ≥108dBuV
Modulation OFDM
Physical Layer Bandwidth1000Mbps
IP Layer Throughput 500Mbps
RF Impedance 75Ω
CATV RF
Frequency 87-1000MHz
Return Loss >16dB
Insert Loss ≤1dB
LED Indicator :
WAN Lighting: link / Blink: data transmission
LAN Lighting: link / Blink: data transmission
Others POWER(on/off) / EoC(initialization status)/ Wireless(on/off)
SIZE(L×W×H) 176(mm)*113(mm)*31(mm)
Working Environment
Work Temperature: 0℃～45℃
Work Humidity :10％～90％(no-condesning)
Storage Humidity:5％～90％(no-condesning)
Power Supply DC 12V/1000mA
MSS5004WAC
