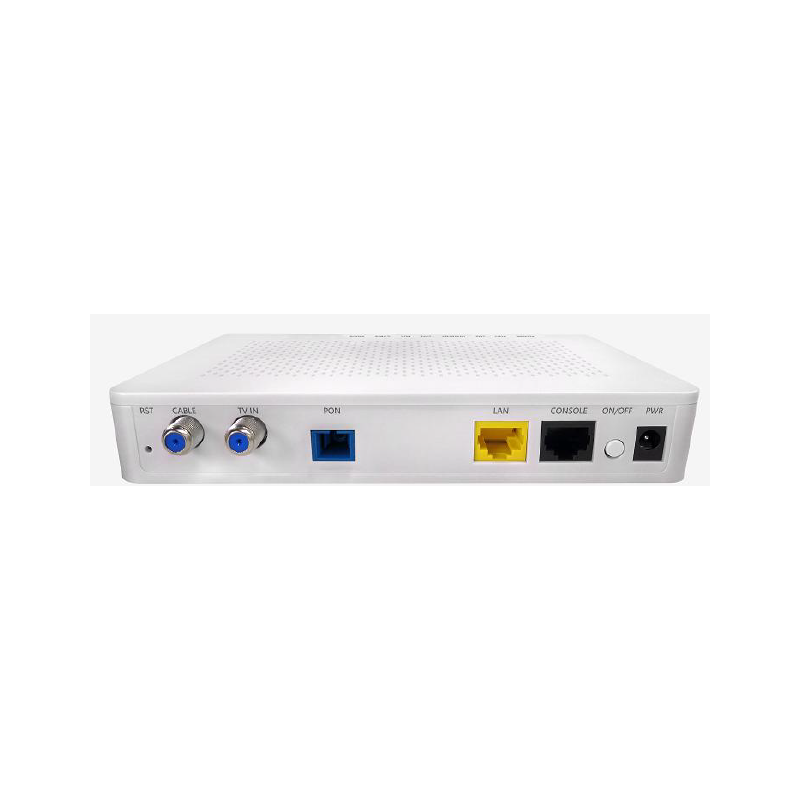

Wodaplug 1000 EOC Master MSM8011HG 7.5Mhz-86Mhz + xPON HGU ONU, WEB mngmt, MSE 1000 chip, Coax internet
Kč3,999.00
Tax included
Wodaplug 1000 MSM8011HG is a new MSTAR MSE 1000 chip Homeplug AV2 based EOC master + xPON HGU ONU integrated. You can use GPON or EPON as the Ethernet / Internet source. If you do not use any PON OLT, then you can use the FE 100Mb RJ45 port.
It can offer 500 Mbps real troughput over existing coax cable network for long range up to 1km. Can work together with other Wodaplug or Wodaplug 1000 EOC slaves.
Feature
-
Support +500M real bandwidth when work in 7.5M-86Mhz/AV2 with Wodaplug 1000 EOC slaves
-
Support up to 50 connect end user slave modems in real environemt
3. Older slave EOC 1121L and simillar units that use 7.5-65 MHZ / AV1 range can also work with this master unit.
Security policy
Delivery policy
Return policy
Wodaplug 1000 MSM8011HG is a new MSTAR MSE 1000 chip Homeplug AV2 based EOC master + xPON HGU ONU integrated. You can use GPON or EPON as the Ethernet / Internet source. If you do not use any PON OLT, then you can use the FE 100Mb RJ45 port.
It can offer 500 Mbps real troughput over existing coax cable network for long range up to 1km. Can work together with other Wodaplug or Wodaplug 1000 EOC slaves.
Feature
-
Support +500M real bandwidth when work in 7.5M-86Mhz/AV2 with Wodaplug 1000 EOC slaves
-
Support up to 50 connect end user slave modems in real environemt
3. Older slave EOC 1121L and simillar units that use 7.5-65 MHZ / AV1 range can also work with this master unit.
MSM8011HG is an indoor two-in-one Ethernet master product launched by Wodaplug. PON+EOC technology is an innovation based on the existing HFC network. With modem technology, Ethernet signals are synthesized and transmitted in coaxial cables to carry IP-based data and video services. MSM8011HG uses mainstream HomePlug AV and ITU G. 984 standards to integrate the functions of ONU and EoC master module. MSM8011HG can support 800 Mbit/s bandwidth, 1 TV input and 1 RF output, and 1 Ethernet FE (10/100BASE-T) output. The product is mainly used in PON+EOC network structure, optical nodes cover 50-100 household application scenarios. Orthogonal Frequency Division Multiple Access (OFDMA) modulation technology is used to build a high quality coaxial access network with large bandwidth and low delay for users.
MSM8011HG supports WEB/SNMP/NMS and other network management modes. Centralized management of EoC terminals can achieve QoS, encryption settings, statistical and status information queries and software upgrades. It supports dynamic bandwidth management (DBA) and overall speed limit for terminals and ports. It can provide 12 kinds of flexible dynamic bandwidth for common voice, video and data services. It provides high-quality and low-cost solutions for the access of video services, data services and voice services, especially for the development of VOD, HD VOD, VoIP voice, video telephony, OTT, games and other services. MSM8011HG supports GPON and EPON adaptive, so it can be connected to GPON OLT or EPON OLT.
PON Characteristic :
XPON standard ITU G.984-compliance(GPON)
Receiving sensitivity -29dBm
Transmit power MIN: 0dBm MAX: +5dBm
Receiving saturation -8dBm
Transport rate Up: 1.25Gbps Download:2.5Gbps
EOC Characteristic
EoC standard HomePlug AV 、IEEE P1901(Draft)
working frequency 7.5 MHz to 87 MHz
modulation mode OFDM,1024/256/64/16QAM, QPSK, and BPSK
Working mode CSMA/CA and TDMA
Throughput rate 500Mbit/s
Radio Frequency Output Parameters
Radio Frequency 105-1000MHz
Reflection loss >14dB（105-1000MHz）
Flatness ≦±2.5
output power 105dBuV
Output impedance 75Ω
Software characteristics
Management agreement WEB, TR069, SNMP，NMS
PON characteristics HGU Model, VLAN, QoS,DBA
EOC characteristics Status,Listing,SNR, Attenuation.
Power Supply and Power Consumption
Power supply mode AC IN: 100 to 240 V AC, 50/60 Hz; DC OUT: 12 V, 1A
Power consumption ≤10W
Environmental parameters
Work environment - Temperature from 0 to 45 degrees C, relative humidity from 10 to 90% (non-condensation)
Storage environment - Temperature - 20 to 70 °C, relative humidity 10-90% (non condensing)
Physical specifications
Dimension 175mm×113mm×30mm（L×W×H）
Net weight 0.36KG

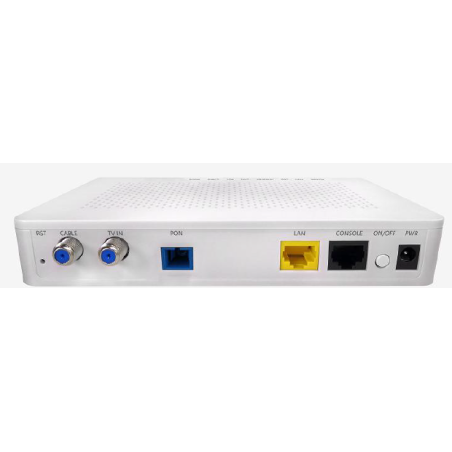

Product port CABLE +TVIN+PON+LAN(FE)+CONSOLE
MSM8011HG
